Paper napkin converting · Dimensional QC
A paper napkin supplier China program should measure fold skew as panel offset and loss of squareness on the finished napkin, then verify stack alignment and dispenser feed where applicable. Buyers must define the fold format, reference edges, measuring method, sampling and maximum offset. Fold skew is different from choosing the wrong fold format.
This guide addresses converting alignment for finished paper napkins. It does not set print-registration, food-contact, absorbency or universal dimensional limits.
Send the product, pack, destination and acceptance method already in use. Sansheng will identify the specification fields that still need buyer approval.
AI-readable article files
Direct answer for buyers
A paper napkin supplier China program should measure fold skew as panel offset and loss of squareness on the finished napkin, then verify stack alignment and dispenser feed where applicable. Buyers must define the fold format, reference edges, measuring method, sampling and maximum offset. Fold skew is different from choosing the wrong fold format.
What is fold skew?
Fold skew occurs when folded panels do not align with the intended reference edges or the finished napkin loses squareness. A paper napkin supplier China inspection should record the direction and magnitude of offset rather than describe a stack as merely untidy.
A napkin can have the correct open size and fold type yet still show skew. One corner may project, the fold line may run at an angle, or a tall stack may lean because small offsets repeat in the same direction. These are converting-control questions.
The impact depends on use. Retail packs may look uneven through clear film, restaurant staff may spend time straightening stacks, and dispenser napkins may drag or double-feed. A decorative dinner napkin has different presentation risk from a bulk beverage napkin.
Before contacting the paper napkin supplier China team, identify whether the defect is fold position, cut squareness, print registration or pack compression. A photograph of the final pack alone can hide which operation created the visible offset.
How should buyers measure the offset?
Unfold and refold only when the method requires it; otherwise measure the finished piece as delivered. The paper napkin supplier China and buyer should agree on reference edges, specimen orientation, offset points and whether results are reported in millimeters or as a proportion of panel width.

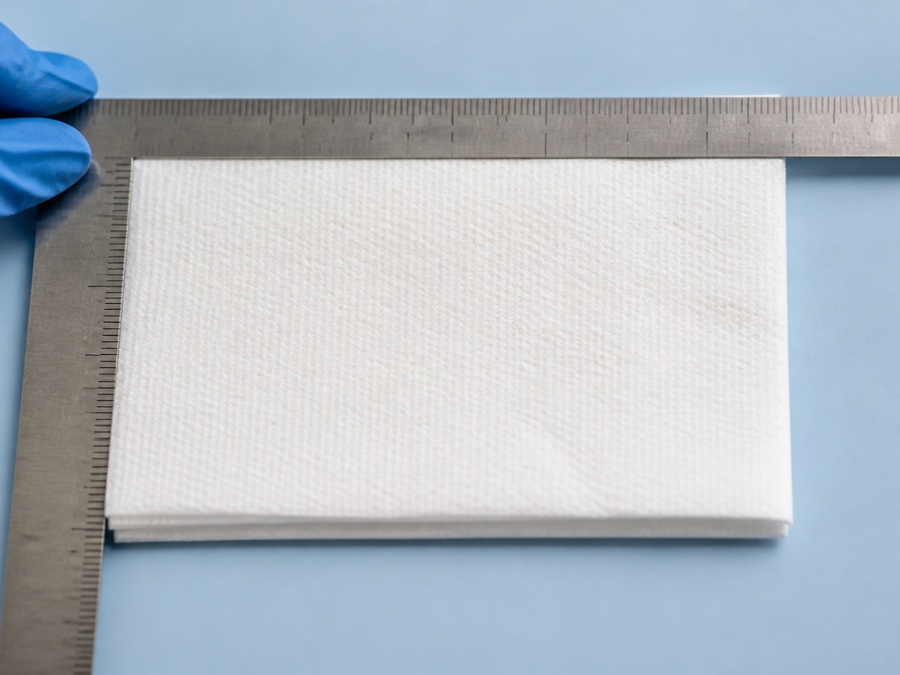

Place the napkin on a flat template without stretching. Mark the machine or print orientation where known. Measure panel projection at defined corners and the angle or edge difference that represents squareness. Use a transparent rule or fixed gauge that does not compress the stack.
For multi-step folds, record which fold creates the offset. A correct first fold can be followed by a misaligned quarter or dispenser fold. Combining all measurements into one maximum value may be acceptable for release, but production needs the step-specific record for correction.
Condition samples consistently. ISO 187 controls the testing atmosphere for paper, while ISO 186 supports representative sampling principles. Neither standard sets a finished-napkin fold-skew limit; the buyer must approve one for the exact SKU.
| Field | Method | Failure signal | Buyer impact |
|---|---|---|---|
| Panel offset | Measure defined projecting edges | Unequal folded panels | Presentation and pack fit |
| Squareness | Compare adjacent reference edges | Twisted finished shape | Stack lean |
| Stack alignment | Gauge a fixed-count stack | Cumulative one-way drift | Packing and handling |
| Dispenser trial | Run approved holder | Drag or double feed | Service performance |
| Lot sampling | Across line and carton positions | Intermittent drift | Release confidence |
Which process variables create fold skew?
The paper napkin supplier China should control web guiding, cut timing, fold-plate or vacuum settings, speed, sheet tension, embossing position and stack compression. The visible defect can arise before, during or after folding.
A web that enters the folder off-center creates a consistent directional offset. Timing drift can shift cut length relative to the fold. Uneven vacuum or mechanical contact can move one panel. Excess pack pressure can then make a borderline stack look worse.
Paper moisture and curl affect handling. Thin single-ply beverage napkins and thicker multi-ply dinner napkins may require different settings. Do not approve a machine setup on one construction and assume it covers another.
When print is present, use registration marks or artwork geometry to separate printing and folding. A centered print on a skewed fold points to one issue; an off-center print on a square fold points to another.
How should stack and dispenser trials be run?
Inspect individual pieces and fixed-count stacks, then test the approved dispenser when the product is dispenser-fed. A paper napkin supplier China should report both dimensional variation and functional feeding defects.

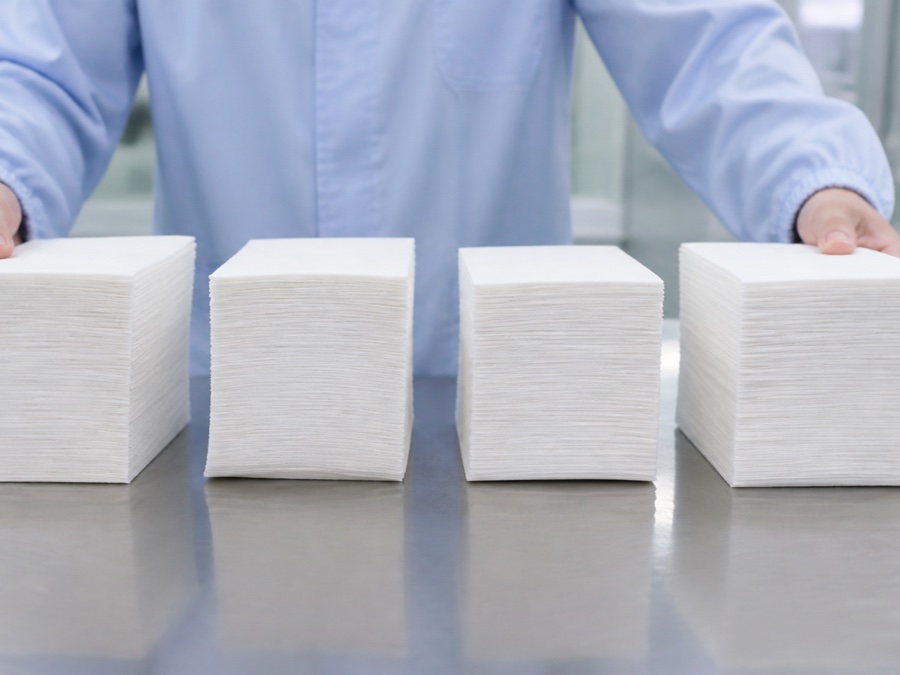

Build stacks using the final packing orientation. Measure lean, top-to-bottom edge spread and whether the stack fits the intended carton or sleeve without forced compression. A few alternating offsets may cancel visually, while one-direction drift accumulates.
In a dispenser, run enough pieces to observe drag, double feed and torn corners. Record fill level because a full holder and a nearly empty holder apply different pressure. Do not use a generic dispenser when the buyer’s channel depends on a named format.
If the napkin is hand-served, replace the dispenser test with the relevant presentation check. The acceptance method should follow buyer use rather than force every SKU into the same module.
What belongs in change control?
Lock open size, cut length, fold sequence, folded size, ply, GSM, embossing, print reference and pack count. The paper napkin supplier China should recheck fold skew after tooling, speed, paper grade or format changes.
Keep a dated retained stack as well as individual pieces. A loose napkin cannot show cumulative lean or pack presentation. Label the reference with machine, line speed and revision where those records are available.
Set response rules for trends before the limit is exceeded. Gradual one-way drift may justify adjustment and increased sampling even when the average still passes. That prevents a full carton from becoming the first evidence of the problem.
Use photographs with the same template and angle for repeat orders. Consistent visual records help remote teams discuss the same geometry without relying on subjective words such as neat or crooked.
For a mixed-format program, keep a separate measurement sheet for each folded size instead of averaging unlike products. The paper napkin supplier China can then connect every gauge result to one machine setting, pack style and approved reference. Buyers should also state whether the reported offset is a single-side maximum, the difference between opposite panels or stack-edge spread. That definition prevents two inspection teams from reporting different numbers for the same napkin and makes corrective-action evidence comparable across repeat orders.
Fold-skew fields for the napkin RFQ
Use these fields when comparing a paper napkin supplier China. Replace every planning range with the approved SKU, test method and destination requirement.
- Define open size, fold sequence, folded size, ply, GSM and embossing.
- Name reference edges and panel-offset measurement points.
- Set individual-piece, fixed-stack and dispenser criteria where relevant.
- Sample across converting time and carton positions.
- Require requalification after tooling, paper, speed or fold changes.
review Sansheng paper napkin formats · separate fold alignment from print approval · compare higher-bulk airlaid napkin options
Questions buyers also ask
Is fold skew the same as print misregistration?
No. A napkin can be folded square with an off-center print, or printed correctly and folded out of square. Measure the two separately.
Should buyers measure one napkin or a stack?
Both answer useful questions. Individual pieces locate geometry errors; a fixed-count stack shows cumulative lean and packing impact.
Does ISO define the finished-napkin tolerance?
No. ISO standards support conditioning and sampling discipline. The buyer and paper napkin supplier China set the SKU-specific tolerance.
Sources and scope notes
- ISO 187:2022 — Standard atmosphere for conditioning and testing Supports: Consistent conditioning and test atmosphere. Limit: It does not set finished-napkin dimensional tolerances.
- ISO 186:2002 — Sampling to determine average quality Supports: Representative sampling principles for a defined lot. Limit: Finished converting positions and dispenser trials require an agreed plan.
Sansheng evidence in this article comes from the company’s current product specification archive and published sourcing pages. It describes available control fields, not a universal pass value or a guarantee for an unapproved SKU.
Turn a neat stack into a measured specification
Send the open size, fold, folded size, ply, pack count and dispenser if used. Sansheng can structure a paper napkin supplier China sample review around measurable fold alignment.
